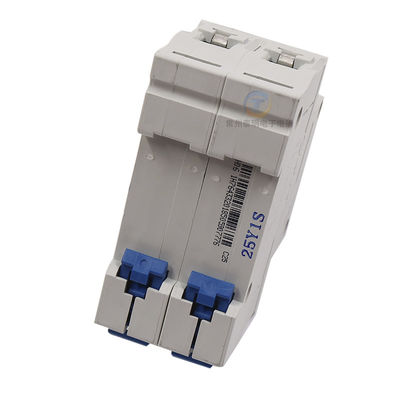

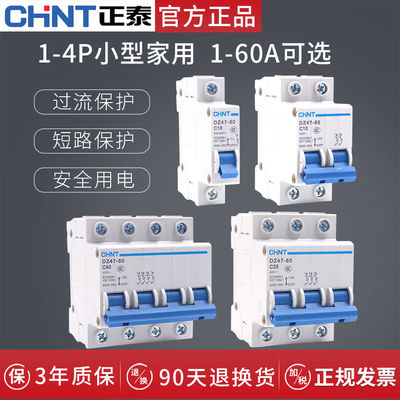

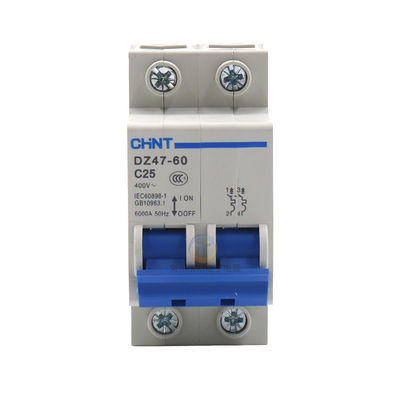

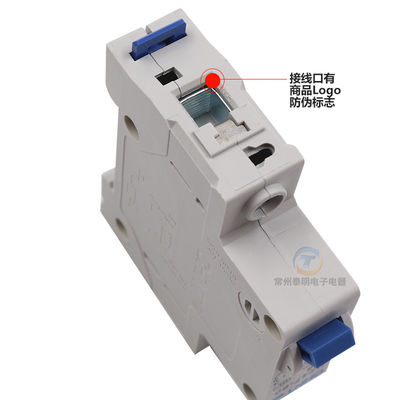

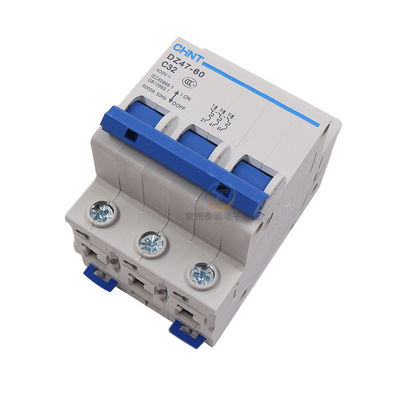

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik

  • Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
  • Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
  • Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
  • Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
  • Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik
Productdetails:
Plaats van herkomst: China
Merknaam: Chint
Modelnummer: DZ47-60
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 12pcs/1doz.
Prijs: USD1~15/unit
Verpakking Details: norm in kartondoos
Levertijd: 2~15days
Betalingscondities: T / T, Western Union
Levering vermogen: 100.000 stuks per maand
Contact
Gedetailleerde productomschrijving
Certificering: CCC, CE, GS etc. model: DZ47-60
Pool: 1,2,3,4,1P+N Volt: 1P, 2P-220/230/240V, 3P, 4P-380~415V
HZ: 50~60Hz Fase: 1/3
standaard: EN/IEC60898, IEC60947 Brekende Capaciteit: Ics=Icn=6000A, 4500A
Thermische reiskromme: B, C, D Gevalmateriaal: Nylon rekupereerbare PA6
bedrading: eindblok, busbar buis enz. IP20B elektrische schokbescherming: KLASSE II
Mechanische levensduur: 10.000 Het elektroleven: 5,000
Hoog licht:

Gevormde Gevalstroomonderbreker

,

elektrische stroomonderbreker

MCB DZ47-60, C45

CHINT in China wordt gemaakt dat

AC Gebruiks Miniatuurstroomonderbrekers 6~63 A, 80~125A,



Miniatuurstroomonderbrekers voor AC Huidige kringen, die de eindbescherming van de distributieinstallatie aanbieden



DZ47-60 is een miniatuurstroomonderbreker die AC huidige kringsbescherming aanbiedt. Het beschermt kringen tegen kort:sluitenstromen en overbelast stromen.

DZ47-60 de ministroomonderbreker wordt gebruikt in het systeem van de verlichtingsdistributie of het systeem van de motordistributie voor beschermingsoverbelasting en kort:sluiten in het systeem. Het product is neoteris in structuur, licht in gewicht, betrouwbaar en uitstekend in prestaties. Het heeft hoge brekende capaciteit, kan snel overhalen, en zijn geval en punten worden goedgekeurd door hoge vuurvaste en schokbestendige plastieken. Het product met met lange levensuur, wordt hoofdzakelijk gebruikt in AC 50Hz/60Hz enig-pool 240 of twee drie, four-pole 415V-kring voor overbelasting en kort:sluitenbescherming evenals voor unfrequent aan en uit schakelend elektrisch materiaal en aanstekende kring in normaal geval. De producten voldoen aan CEI 60898 & BS 3711.

  • Volgzaam met IEC60898
  • Beschikbaar in 1P, 2P 3P, 4P en 1P+N
  • B, C, het overhalenkromme van D
  • Tot 500V AC.

NBE7 MCB combineert de volgende functies:
B Bescherming van kringen tegen kort:sluitenstromen
B Bescherming van kringen tegen overbelastingsstromen
B Controle
B isolatie



Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 0

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 1

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 2

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 3

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 4

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 5

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 6



Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 7

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 8

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 9



Specificatielijst

Norm Geschat Huidig (a) Pool Voltage (V) Brekende Capaciteit (A)
BS3871-1 IEC60898 1 tot 40 50 tot 63 1 240 6000
2,3,4 415 6000
Iec157-1 50 tot 63 1 240 4000
2,3,4 415 4000
1 1 220/240 10000
2,3,4 220/240 20000
2,3,4 380/415 10000
3 1 220/240 8000
2,3,4 220/240 20000
2,3,4 380/415 8000
10 tot 40 1 220/240 7000
2,3,4 220/240 16000
2,3,4 380/410 8000
50 1 220/240 6000
2,3,4 220/240 10000
2,3,4 380/410 6000
63 1 220/240 5000
2,3,4 220/240 10000
2,3,4 380/410 5000
Norm Geschat Huidig (a) Pool Voltage (V) Brekende Capaciteit (A)
BS3871-1 IEC60898 1 tot 40 1 240 4000
2,3,4 415 4000
Iec157-1 1 tot 40 1 220/240 6000
2,3,4 220/240 12000
2,3,4 380/415 6000

Chintdz47-60 Miniatuurstroomonderbreker 6~63A, 80~125A, 1P, 2P, 3P, 4P voor Kringsbescherming AC220, 230V, 240V-Gebruik 10

BOUW EN EIGENSCHAP
. Geschikt voor schakelaar elektrische kring met lading
. Geschikt om opgeslagen energieverrichting snel vrij te geven
. Aanpasbaar aan hangslotapparaat
. De aanwijzing van de contactpositie
. De hoge kort:sluitenstroom weerstaat capaciteit
. Hoog aangestoken van hoogte makende en brekende capaciteit
. Gebruikt als hoofdschakelaar voor huishouden en gelijkaardige installatie

TECHNISCHE GEGEVENS
. Pool nr.: 1,2,3,4
. Geschatte Stroom (A): 1,2,3,4,6,10,16,20,25,32,40,50,63
. Geschatte frequentie: 50/60Hz
. Nominale spanning: 230/400V AC
. Geschat weersta stroom: 1000A binnen lesc
. Elektromechanische duurzaamheid: 1000 Cycli
. Geschatte kort:sluiten die capaciteit maken: 4500A, 6000A
. Verbindingscapaciteit: Stijve leider 25mm2
. Verbindingsterminal:
. Schroefterminal
. Pijlerterminal met lamp
. Installatie:
. Comité steun

GLOBAAL & INSTALLATIEdimensies

  Norm   IEC/EN 60898-1
Mechanisch
eigenschappen
Het elektroleven   4000
Het mechanische leven   10000
Beschermingsgraad   IP20
Referentietemperatuur voor
het plaatsen van thermisch element
30
Omgevingstemperatuur (met dagelijks
average≦35℃
-5. +40
Opslagtemperation
Installatie Eindverbindingstype   Cable//U-type busbar/speld-type busbar
Eindgroottebovenkant/bodem voor kabel mm2 25
AWG 18-3
Eindgroottebovenkant/bodem voor busbar mm2 25
mm2 18-3
Het aanhalen torsie N*m 2
In-Ibs. 18
Steun   Op DN-spooren 60715 (35mm) door meas van snel klemapparaat
Verbinding   Van bovenkant en bodem
Geschatte stroom
In (a)
De coëfficiënt van de temperatuurcompensatie onder diverse operationele temperatuur
-10℃ 0℃ 10℃ 20℃ 30℃ 40℃ 50℃ 55℃ 60℃
6 1.2 1.14 1.09 1.05 1.00 0,96 0,8 0,75 0,7
10-32 1.18 1.12 1.08 1.04 100 0,96 0,92 0,88 0,84
40 1.16 1.12 1.07 1.03 1.00 0,97 0,87 0,83 0,80
  Norm   IEC/EN 60898-1
Elektro
eigenschappen
Geschatte stroom binnen A 6,10,16,20,25,32,40,50,63
polen   1P, 2P, 3P, 4P
Nominale spanning Ue V 230/400
Isolatievoltage Ui V 500
Geschatte frequentie Herz 50/60Hz
Geschatte brekende capaciteit Ka 6000
Geschat impelse weersta voltage (1.2/50) UimpStandard V 4000
Diëlektrisch testvoltage bij Ind., Fred, voor 1 min KV 2
Polluttiongraad   2
Themo-magnetische versiecharacteristis   B, C, D
