Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Productdetails:
Plaats van herkomst: CHINA
Merknaam: VEOLIA
Certificering: CE
Modelnummer: Mk-9
Document: Veolia EDI catalog.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 pc
Prijs: Onderhandelbaar
Verpakking Details: Standaard exportpakking
Levertijd: 5- 8 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 60000 eenheden per maand
Contact
Alle producten
de doos van de verlichtingsdistributie (33)
elektrodistributiedoos (33)
Weerbestendige Distributiedoos (48)
De Doos van de glasvezelbijlage (60)
Automatische de Overdrachtschakelaar van ATS (68)
EDI-modules (139)
Ultrafiltratiemembraanmodules (57)
industriële stroomonderbreker (85)
zonnepv systeem (72)
Elektrische EV-het Laden Post (21)
Modulaire Timingsrelais (12)
De Relais van de automatiseringscontrole (64)
De Transformator van de voltageregelgever (16)
De Ballons van de filmverlichting (136)
Het Licht van de maanballon (131)
Driepoot LEIDENE Ballons (115)
Opblaasbare Lichte Toren (62)
Eindbloktoebehoren (6)
Gedetailleerde productomschrijving
MK-9 stapelafmetingen (cm als breedte x hoogte x diepte): 30 x 61 x 74 MK-9 stapel totale uitwisselbare anionen (ppm als caco3): <13
MK-9 stapelgeleidbaarheid (μs/cm): <22 MK-9 stack pH: 4-11
MK-9 stapeltemperatuur (° C): 4.4-40 MK-9 Stack Hardheid (PPM als CACO3): <1.0
Druk: 2.4–3.4 bar (35-50 psi) Inlaatdruk: ≤ 6,9 bar (100 psi)
Stroomsterkte: 0–5.2 ADC Spanning: 0–400 VDC
Herstel: Tot 97% Sollicitatie: High-flow en robuust ontwerp

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

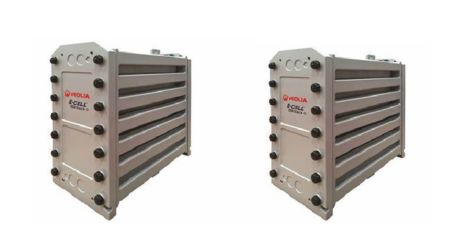

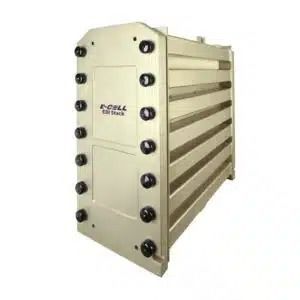

The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to ​​10 m³/h​​ (44 GPM) with resistivity ​​≥16 MΩ·cm​​ and silica removal to ​​≤5 ppb​​. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to ​​97%​​ and supports hot-water sanitization (up to ​​85°C​​) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance
Product Specifications
Attribute Value
Stack Name MK-9
Dimensions (cm) 30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3) <13
Conductivity (μS/cm) <22
pH Range 4-11
Temperature Range (°C) 4.4-40
Hardness (ppm as CaCO3) <1.0
Silica (ppm as SiO2) <1.0
Typical designed water production (m3/hr) 6.0-10.0
Recovery Rate Up to 97%
Voltage 0–400 VDC
Typical Applications Solar Photovoltaics And Green Hydrogen
Product Overview
The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.
Key Features & Benefits
  • Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
  • Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
  • Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
  • Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
  • Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
  • Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
Parameter Value
Brand Veolia EDI
Inlet Pressure 6.9 bar (100 psi)
Max Temperature 40°C (104°F)
Pressure Drop 2.4-3.4 bar (35-50 psi)
Flow Rate 8.0m3/h
Shipping Weight 165 kg (364 lbs)
Key Advantages
  • Continuously produces ultrapure water of mixed bed water quality
  • No acid and base regeneration required
  • Guaranteed leak-proof design
  • Simplified system design with no brine injection or concentrated water circulation
Typical Applications
  • Power generation (NOx, boiler feed water)
  • Electronics manufacturing
  • General industrial applications
  • Pharmaceutical & Biotech (WFI pre-treatment)
  • Microelectronics & Semiconductor Manufacturing
  • Laboratory Ultra-Pure Water Systems
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 0 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 1 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 2
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.

label:

Ultra zuivere water-EDI-modules,

EDI-modules voor omgekeerde osmose,

97% Recovery EDI-modules
