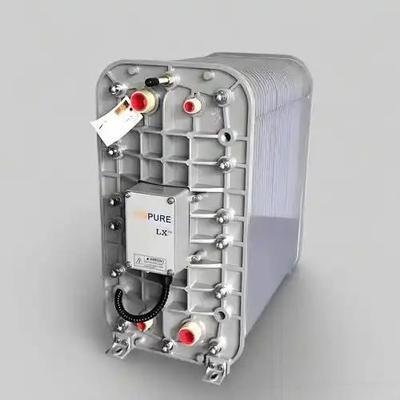

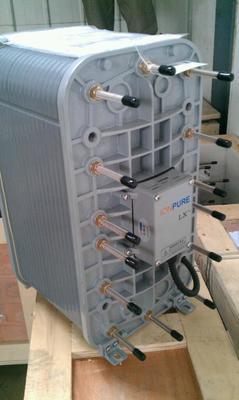

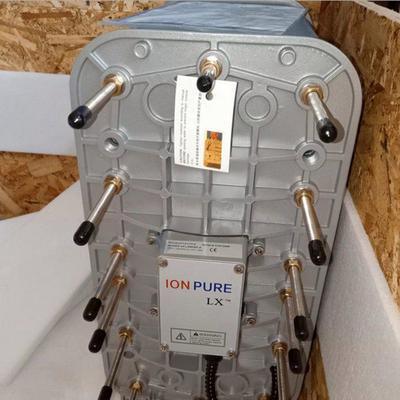

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

  • Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
  • Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
  • Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
Productdetails:
Plaats van herkomst: CHINA
Merknaam: IONPURE
Certificering: CE
Modelnummer: IP-LXM24Z-5
Document: fgwater-ionpure-lxz-ds.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 pc
Prijs: Onderhandelbaar
Verpakking Details: Standaard exportpakking
Levertijd: 5- 8 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 60000 eenheden per maand
Contact
Alle producten
de doos van de verlichtingsdistributie (33)
elektrodistributiedoos (33)
Weerbestendige Distributiedoos (48)
De Doos van de glasvezelbijlage (60)
Automatische de Overdrachtschakelaar van ATS (68)
EDI-modules (139)
Ultrafiltratiemembraanmodules (57)
industriële stroomonderbreker (85)
zonnepv systeem (72)
Elektrische EV-het Laden Post (21)
Modulaire Timingsrelais (12)
De Relais van de automatiseringscontrole (64)
De Transformator van de voltageregelgever (16)
De Ballons van de filmverlichting (136)
Het Licht van de maanballon (131)
Driepoot LEIDENE Ballons (115)
Opblaasbare Lichte Toren (62)
Eindbloktoebehoren (6)
Gedetailleerde productomschrijving
24Z-5 Stack Minimale stroomsnelheid M3/uur (GPM): 1.36 (6.0) 24Z-5 Stack Design Debiet M3/HR (GPM): 2.8-4.2 (12.5-18.8)
24Z-5 stapel verzendgewicht kg (lbs) **: 115 (254) 24Z-5 Stack bedieningsgewicht kg (lbs): 92 (103)
24Z-5 Stack Recovery: 90–95% Stapelen voordelen: Een breed aanbod van water, lage exploitatiekosten, stabiel en betrouwbaar water van hoge zuiverheid
Stack gelijkstroomspanning: 0–400 Stack DC Amperage: 1.0–6.0
producttoepassing: Biofarmaceutische industrie

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.
Product Overview

The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.

Key Features
  • Excellent electrical insulation performance
  • Double O-ring seal ensures leak-free operation
  • Significantly lower operating costs than traditional ion exchange
  • No acid, alkali, or neutralization system required
  • Continuous operation at 7bar (100psi), 45°C (113°F)
  • Patented "full-filled" concentrate chamber design
  • Produces water quality equal to or better than mixed bed systems
  • Continuous water production with stable quality
Technical Specifications
Attribute Value
Minimum Flow Rate (m³/hr/gpm) 1.36 (6.0)
Design Flow Rate (m³/hr/gpm) 2.8-4.2 (12.5-18.8)
Shipping Weight (kg/lbs) 115 (254)
Operating Weight (kg/lbs) 92 (103)
Recovery Rate 90-95%
DC Voltage 0-400
DC Amperage 1.0-6.0
Module Components

The EDI membrane block removes ions through built-in ion exchange resin, consisting of:

  • Pure water chamber - Mixed resin layer between anion and cation exchange membranes
  • Concentrated water chamber - Working interlayer between pure water chambers
  • Electrode plates - Generate electric field during operation
Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry 0
Applications
  • Solar photovoltaic industry
  • Electronics manufacturing
  • Biopharmaceutical production
  • Chemical processing
  • Conventional industrial applications
  • Power industry
Quality Assurance

CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry 1
Operating Environment

Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry 2
Performance Data
Recovery: 90-95%
DC Voltage: 0-400
DC Amperage: 1.0-6.0
Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†
Silica (SiO2) Removal: 90-99%
Feed Water Specifications
Parameter Specification
Conductivity < 40 μS/cm
Temperature 5-45°C (41-113°F)
Inlet Pressure 1.4-6.9 bar (20-100 psig)
Total Chlorine < 0.05 ppm
pH 4-11
Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry 3
About FG Water Technologies

A high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment, serving various industrial sectors worldwide.

For more information, visit: www.fgwater.com
