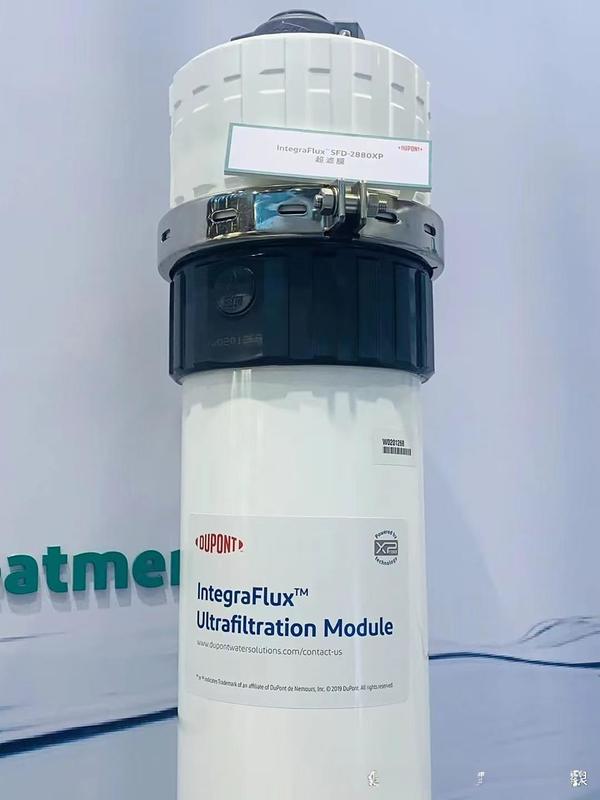

High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production

High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production

  • High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production
  • High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production
  • High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production
High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production
Productdetails:
Plaats van herkomst: CHINA
Merknaam: Dupont
Certificering: CE
Modelnummer: Integratec ™ XP 77 IG (voorheen SFP 2880XP)
Document: UF-IntegraTec-P-Series-PVDF...49.pdf
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 pc
Prijs: Onderhandelbaar
Verpakking Details: Standaard exportpakking
Levertijd: 5- 8 werkdagen
Betalingscondities: Western Union, T/T
Levering vermogen: 60000 eenheden per maand
Contact
Alle producten
de doos van de verlichtingsdistributie (33)
elektrodistributiedoos (33)
Weerbestendige Distributiedoos (48)
De Doos van de glasvezelbijlage (60)
Automatische de Overdrachtschakelaar van ATS (68)
EDI-modules (139)
Ultrafiltratiemembraanmodules (62)
industriële stroomonderbreker (85)
zonnepv systeem (72)
Elektrische EV-het Laden Post (21)
Modulaire Timingsrelais (12)
De Relais van de automatiseringscontrole (64)
De Transformator van de voltageregelgever (16)
De Ballons van de filmverlichting (136)
Het Licht van de maanballon (131)
Driepoot LEIDENE Ballons (115)
Opblaasbare Lichte Toren (62)
Eindbloktoebehoren (6)
Gedetailleerde productomschrijving
XP 77 Ig effectief membraangebied: 8 inch XP 77 Ig -debiet per module: 2.0–8,5 m³/uur (8,8–37,6 gpm)
XP 77 Ig Max Feed Druk: 6.25 bar (90,65 psi) bij 20 ° C XP 77 Ignominale poriediameter van XP 77 Ig: 0,03 µm
XP 77 IG Max Backwash -druk: 2.5 bar (36 psi) Max. het bedienen van TMP van deze module: 2.1 bar
Max operationele luchtschuurstroom van deze module: 12 nm3/uur XP 77 Ig -gebruik: Grootschalige waterbehandeling
XP 77 IG Adavantage: High-flux

High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production

Featuring exceptional fouling resistance and stable high-flux performance, the DuPont IntegraTec XP 77 IG ultrafiltration membrane delivers reliable water purification for critical industrial applications. This advanced membrane provides excellent removal rates for bacteria, viruses, and endotoxins while maintaining low energy consumption and minimal maintenance requirements.

Ideal for pharmaceutical manufacturing, microelectronics production, and healthcare water systems, this membrane ensures compliance with stringent quality standards while offering sustainable operation with reduced chemical usage and wastewater generation.

Product Specifications
Attribute Value
Effective membrane area 8 inch
Flow rate per module 2.0–8.5 m³/hr (8.8–37.6 gpm)
Max feed pressure 6.25 bar (90.65 psi) at 20°C
Nominal pore diameter 0.03 µm
Max backwash pressure 2.5 bar (36 psi)
Max operating TMP 2.1 bar
Max operating air scour flow 12 nm3/hr
NaOCl (max.) 2,000 mg/L
Certifications ISO 9001, NSF, CE
Application Pharma and Beverage
Product Description

The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.

Key Features
  • Superior Filtration Efficiency
    • 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
    • High-flux design: 35% higher permeability than previous-generation modules
  • Robust Construction & Reliability
    • PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
    • U-PVC housing: Eliminates the need for external pressure vessels
  • Optimized Operational Economics
    • Outside-in flow configuration: Tolerates feedwater with high suspended solids
    • Innovative end-cap design: Simplifies piping and saves space
High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production 0
Technical Specifications
Model Type Membrane Area (m²/ft²) Module Volume (Liters/Gallons) Weight (Kg/lbs)
XP77 IG Industrial 77 / 829 39 / 10.3 61/100 (empty)
135/220 (water filled)
XP77 NSF/ANSI 61 and 419 77 / 829 39 / 10.3 61/100 (empty)
135/220 (water filled)
High Efficiency · Energy Saving: DuPont XP 77 IG UF Membrane for Pure Water Production 1
Operating Parameters
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-110 l/m2/hr 24-65 gfd
Flow range 2.0 - 8.5 m3/hr 8.8 - 37.4 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 90.65 psi
Max. operating TMP 2.1 bar 30.5 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2-11
NaOCl (max.) 2,000 mg/L
Particle size (max.) 300 µm
Flow configuration Outside in, dead end flow

For application cases, please visit: www.fgwater.com/Industries/

About FG Water Technologies

FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment equipment design, manufacturing, trading and shipment served for main industrial sectors.

Our main products include a variety of water purification and treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water reverse osmosis (BWRO), ultrafiltration (UF) system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners.
