analoog de Tijdopnemerrelais van 12V 24V 36V, Macht op Macht van Vertragingselektriciteit 380v 220v 0.5s~24h
Product Details
| Naam van het product: | Het insteekdin-spoorpaneel zet Tijdrelais op | Type: | Het relais van de tijdvertraging |
|---|---|---|---|
| Controlevolt: | DC12, DC24, AC36, AC110, 230, 380V | Acceossories: | Beschikbaar |
| Markeren |
industriële controletransformator,automatiserings elektrocontroles |
||
Product Description

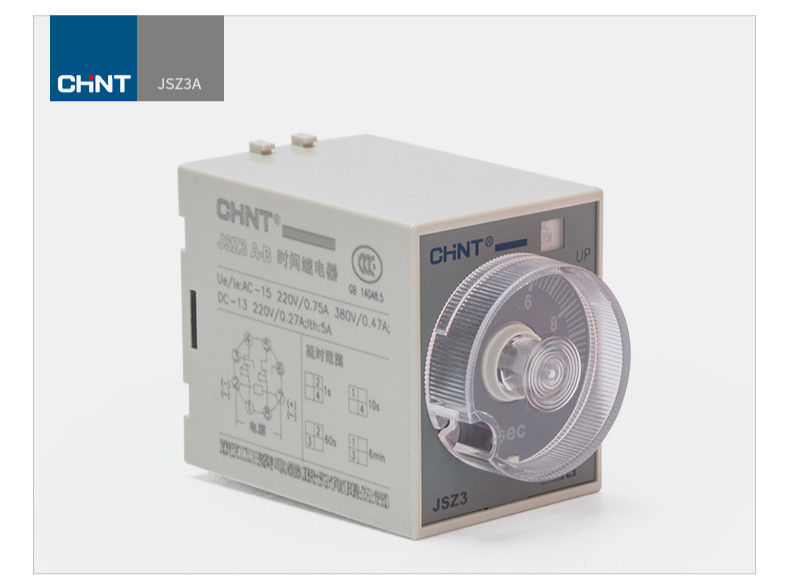

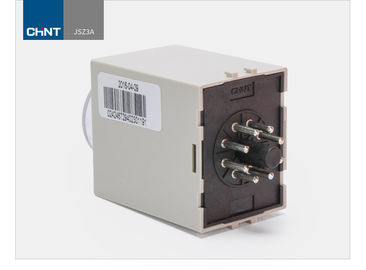

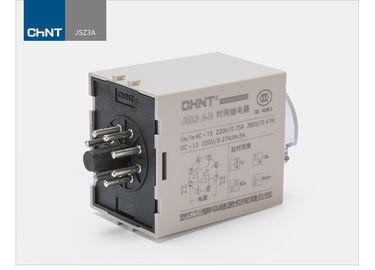

Van het de Timingsrelais van CHINT JSZ3 12v 24v 36v de Analoge Elektriciteit 380v 220v macht-op macht-van Vertragings plaatsende waaier 0.5s~24h
BESCHRIJVING
-
Merknaam: CHNT
-
Theorie: Tijdrelais
-
Bescherm Eigenschap: Verzegeld
-
Contactlading: Lage Macht
-
Modelaantal: JSZ3
-
Gebruik: Beschermend
-
is_customized: Ja
-
Voltage: 12V
-
Krachtbron: AC
-
Conventionele het verwarmen stroom: 5A
-
Omgevingstemperatuur: -5℃~+40℃
-
Isolatievoltage: AC380V
-
Vertragingsnauwkeurigheid: ≤10%
|
SPECIFICATIE |
|
|---|---|
|
Ac-15 Ue V |
380 (AC) 240 (AC) 120 (AC) |
|
D.w.z. A |
0,95 1,5 3 |
|
Gelijkstroom-13 Ue V |
250 (GELIJKSTROOM) 125 (GELIJKSTROOM) |
|
D.w.z. A |
0,27 0,55 |
|
Geschat huidig (a) |
5 |
|
Herhaal fout |
≤5% |
|
De tijd van het Mechnicalleven |
≥1×106 |
|
Elektro het levenstijd |
≥1×105 |
|
Comsuption (w) |
≤3 |
|
Nominale spanning (v) |
12~380 (AC) |
|
12~220 (gelijkstroom) |
|
|
Vertragingstijd |
Jsz3a-a: 0.5s/5s/30s/3min |
|
Jsz3a-B: 1s/10s/60s/6min |
|
|
Jsz3a-c: 5s/50s/5min/30min |
|
|
Jsz3a-D: 10s/100s/10min/60min |
|
|
Jsz3a-e: 60s/10min/60min/6h |
|
|
Jsz3a-F: 2min/20min/2h/12h |
|
|
Jsz3a-g: 4min/40min/4h/24h |
|
|
Jsz3c-a: 0.5s/5s/30s/3min |
|
|
Jsz3c-B: 1s/10s/60s/6min |
|
|
Jsz3c-c: 5s/50s/5min/30min |
|
|
Jsz3c-D: 10s/100s/10min/60min |
|
|
Jsz3c-e: 60s/10min/60min/6h |
|
|
Jsz3c-F: 2min/20min/2h/12h |
|
|
Jsz3c-g: 4min/40min/4h/24h |
|
|
JSZ3F: 0.1s~1s, 0.2s~2s, 0.3s~3s, 0.5s~5s, 0.5s~6s, 1s~10s, 2s~20s, 2.5s~30s, 5s~60s, 10s~100s, 10s~120s, 10s~180s, 0.4min~4min, 0.5min~5min, 0.5min~6min, 1min~10min, 2min~20min, 2.5min~30min |
|
|
JSZ3K: 0.1s~1s, 0.2s~2s, 0.3s~3s, 0.5s~5s, 0.5s~6s, 1s~10s, 2s~20s, 2.5s~30s, 5s~60s, 10s~100s, 10s~120s, 10s~180s, 0.4min~4min, 0.5min~5min, 0.5min~6min, 1min~10min, 2min~20min, 2.5min~30min, 5min~60min |
|
|
JSZ3Y: 0.1s~1s, 0.2s~2s, 0.3s~3s, 0.5s~5s, 1s~10s, 2.5s~30s, 5s~60s, 10s~120s, 10s~180s, 0.5min~5min, 1min~10min |
|
|
JSZ3R: 0.5s-6s/60s, 1s-10s/10min, 2.5s-30s/30min, 1s-10s/100s, 2.5s-30s/5min, jaren '60-10min/100min |
|
|
JSZ3-1, JSZ3-2, JSZ3-3: 0.1s-1s, 0.2s-2s, 0.3s-3s, 0.5s-5s, 1s-10s, 2.5s-jaren '30, 5s-jaren '60, 10s-120s, 10s-180s, |
|
